Cloudfiber’s polarization maintaining optical circulator utilizes proprietary designs and metal bonding microoptics packaging. It provides low insertion loss, broad band high isolation, high extinction ratio, excellenttemperature stability and epoxy free optical path. It can be used for wavelength add/drop, dispersioncompensation, and EDFA applications.
Key Features：
Low insertion loss
Wide band, high isolation
High extinction ratio
Compact in-line package
High stability and reliability
Epoxy free on optical path
Applications：
Optical amplifer
Metro area network
Wavelength add/drop
Dispersion compensation
Bi-directional communication

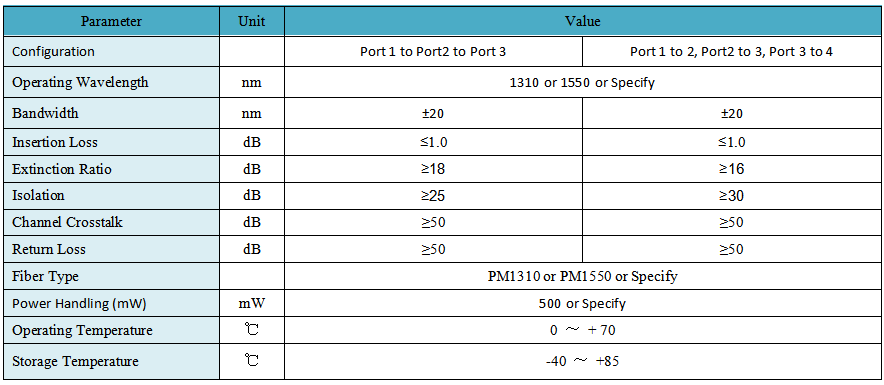

Specifications:
Note: All the data above does not include connectors. IL is 0.3dB higher and ER 2dB lower for each connector added.Connector key is aligned to slow axis.

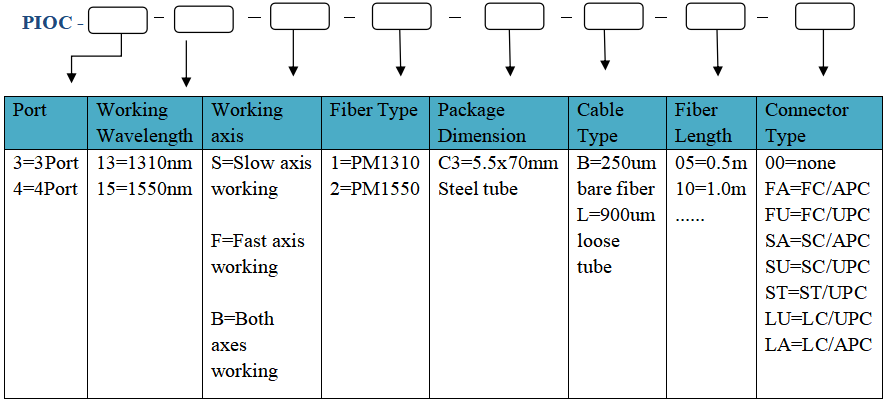

Order Information:
