Cloudfiber’s 3Ports FWDM devices produced by TFF(thin-film filter) technology have the properties of low insertion loss, low crosstalk,wide pass bandwidth and high isolation, which enable users to establish a low cost bi-directional optical communication system.
Key Features：
Wide Operating Wavelength Range
Low Insertion Loss
Ultra Flat Wide Passband
High Channel Isolation
High Stability and Reliability
Epoxy free on optical path
Applications：
System Monitoring
WDM System
Transmitters and Fiber lasers
Fiber Optical amplifier
Fiberoptic Instruments

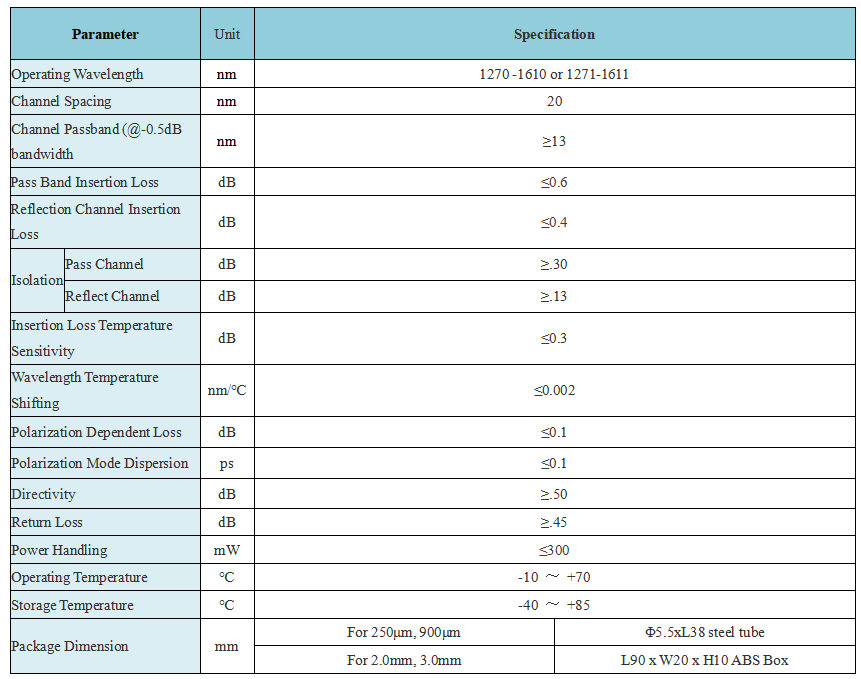

Specifications:
Note: All the data above does not include connectors. If the connector is added, the insertion loss is increased by 0.3dB.

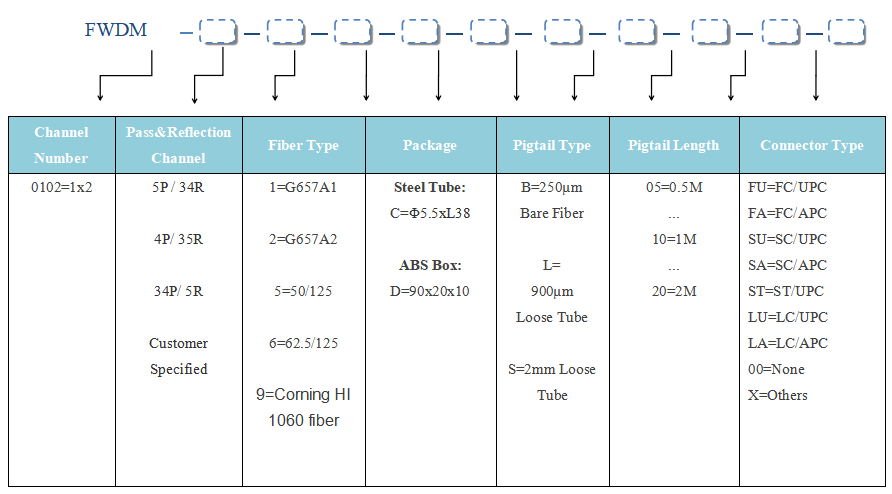

Order Information:

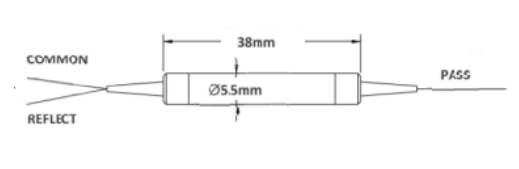

Package Dimension:

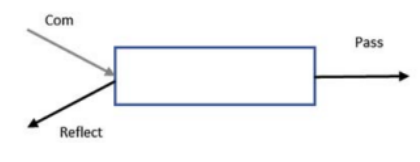

Port Configurations:
