Cloudfiber’s TAIW is a combination of a tap coupler, an isolator and a wavelength division multiplexer in a compact package. The product has an extremely low insertion loss, a very stable tap-coupling ratio, high isolation, and high return loss. The TAIW is ideal for fiber optic amplifier applications.
Key Features：
Wide Operating Wavelength Range
Low Insertion Loss
High Channel Isolation
Ultra Low PDL and PMD
High Stability and Reliability
Epoxy Free Optical Path
Applications：
Fiberoptic Amplifiers
CATV Fiberoptic Links
WDM Systems
Fiberoptic Instruments
Fiberoptic Instruments
Laboratory R&D

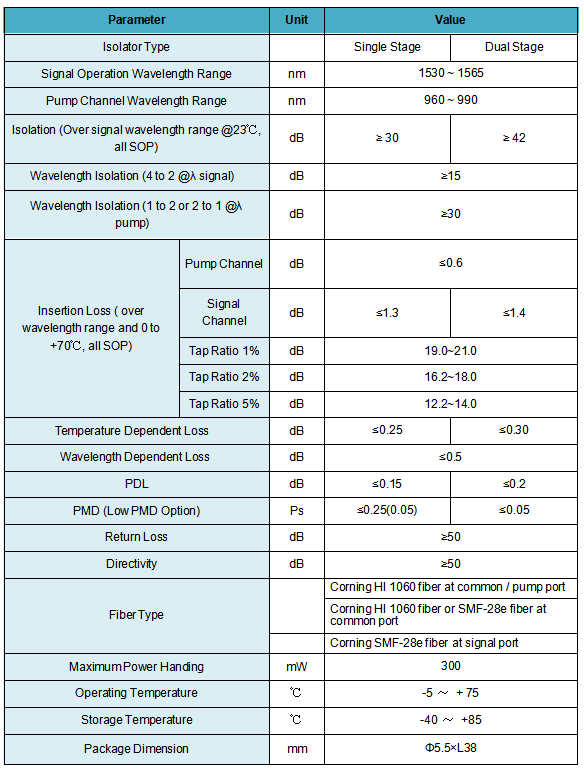

Specifications:
Note: All the data above does not include connectors.

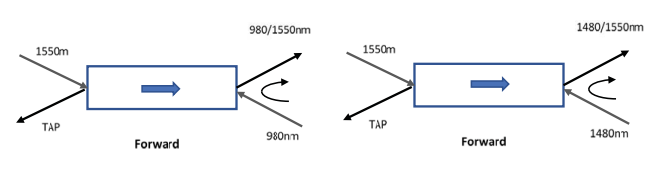

Port Configurations:

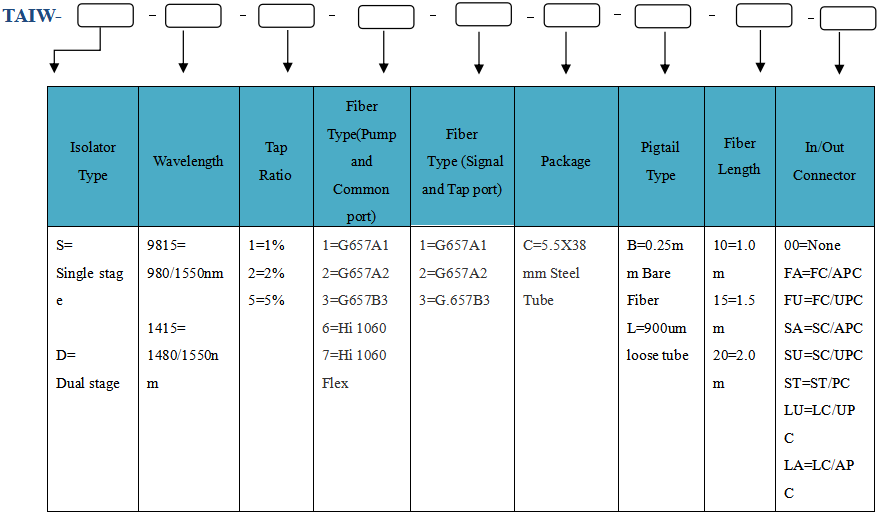

Ordering Information:
