The DWDM OADM(Optical Add Drop Multiplexer) module is a wavelength division multiplexing technology based on TFF(thin film filter), which has a variety of package sizes and wavelength options; In the transmission optical path, OADM can upload and download WDM signals without photoelectric conversion, and it is one of the key nodes in WDM optical network. Using OADM can make its network flexible, easy to upgrade and expand its scale, and it is widely used in LAN,MAN,and other fields.
Key Features：
100/200GHz ITU Channel Spacing
Low Insertion Loss
Wide Pass Band
High Channel Isolation
High Stability and Reliability
Epoxy Free Optical Path
Applications：
Channel Add / Drop
DWDM Network
Wavelength Routing
Fiber Optical Amplifier
CATV Fiberoptic System

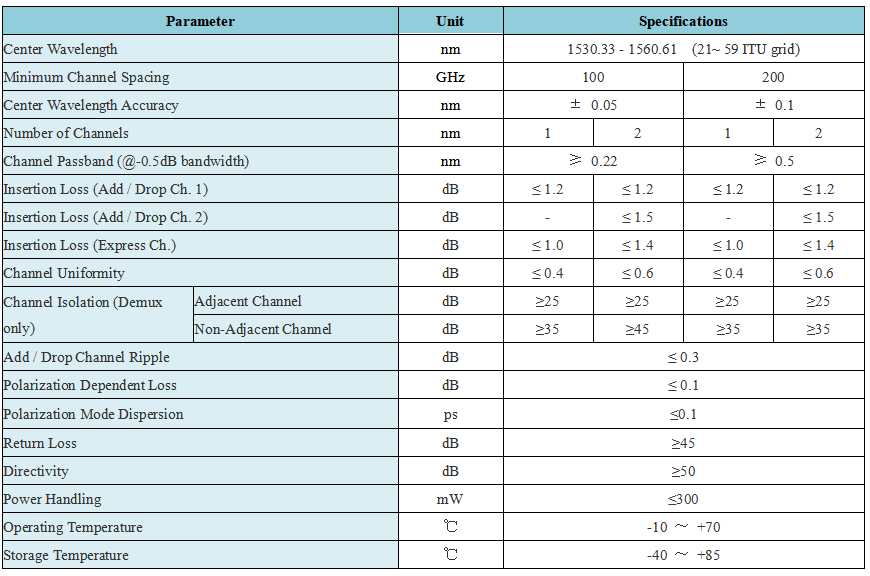

Specifications:
Note: All the data above does not include connectors.

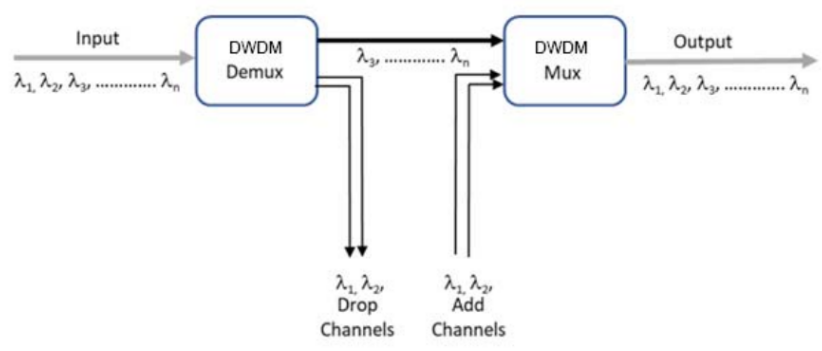

Channel Configurations:
Order Information:
